Push-E Cat

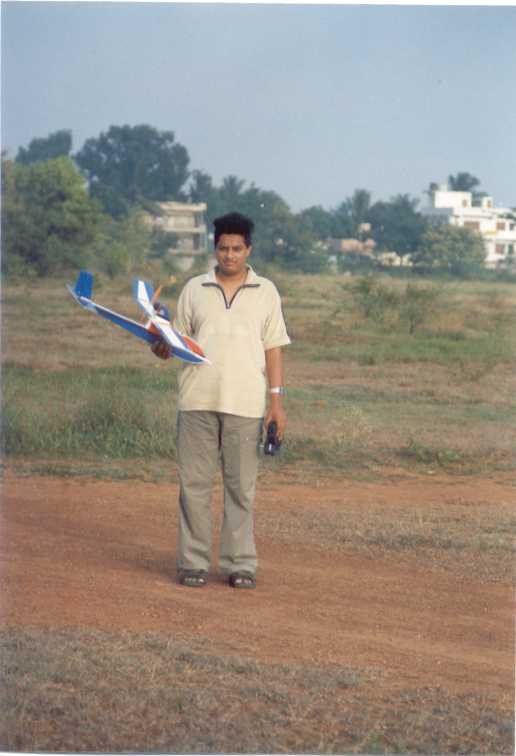

I choose the Push-E Cat as my trainer. The Ezone had a small thumbnail of the Pcat plans, I took a print out of the thumbnail, drew over them using a blue pen, then enlarged it using my scanner and ended up with full scale plans for the Pcat! Having learnt RC flying, I'd highly recommend the PCat as a trainer. It's flying characteristics are very gentle, no bad habits, stalls are almost not present, landings are a breeze, the prop NEVER brakes and damages are minimal! I built mine to accept a geared Speed 280 and it's considerably smaller than the original Speed 400 model. Wing-loading was also kept minimum due to light Styrofoam construction. I had to increase the height of the pylon quite a bit to accept an 8*6 propeller. I flew the model so many times that I decided to retire the airframe and move on. It's served it's purpose perfectly.

Specs


Wing span: 40"
Wing-loading: About 7.5oz/sq.ft
Weight: 320gms/11.4oz
Power: Geared Graupner Speed 280 6V with a 4.1:1 MP-JET gearbox, 9.6V 600mahr Nimh battery pack
Prop: GWS 8*6
Construction: Low density Styrofoam, Wing with a hard Balsa spar
Radio gear: Hitec Focus 3 FM, 2 HS-55 Servos, FMA Mini-5 ESC, Feather Rx.


Sorry, I cant supply plans for the Pcat. You can do the same I did! Check out the links section for more info on the PCat.
